Since MIPS and SPARC use branch delay slots, we're faced with an interesting issue on how to implement them correctly. There are two issues: basic support for branch delay slots, and support for conditionally executed delay-slot instructions (SPARC 'annulled' delay slots).

Basic functionality

In the context of M5 instruction execution, PC is the current instruction's PC and NPC is the PC of the next instruction. Conventional non-delayed branches (as in Alpha) write to NPC to change the next instruction executed. Conceptually all non-branch instructions also update NPC to PC+4, though currently this is implemented in the CPU model and not in the ISA. (Obviously this would have to change if we had variable-length instructions.) Thus between each pair of instruction executions we simply set PC to NPC to advance the program counter.

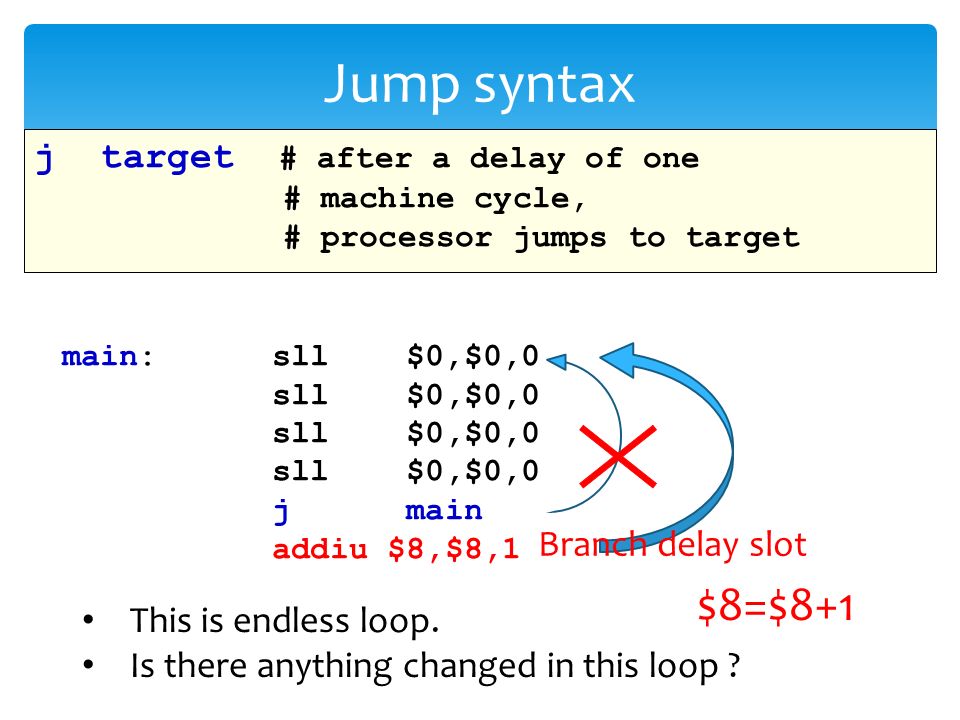

In delayed-branch architectures, we need an additional PC, NNPC, which is the PC of the 'next next' instruction. A simple delayed branch can be implemented by writing the target address to NNPC instead of NPC. Non-branch instructions set NNPC to NPC+4. Between each pair of instruction executions we set PC to NPC and NPC to NNPC. Note that this model (I think) automatically supports some of the funky SPARC delayed branch semantics, such as having a branch in the delay slot of another branch. In MIPS, executing a branch in a branch delay slot results in UNDETERMINED behavior.

Conditional delay slot instructions

Things get more complicated when the delay-slot instruction is effectively predicated on the branch direction. SPARC supports 'annulled' branches in which the delay-slot instruction is not executed if the branch is not taken. (Actually for unconditional branches the annul bit means never execute the delay slot instruction, which is kind of the opposite of what it means for conditional branches.)

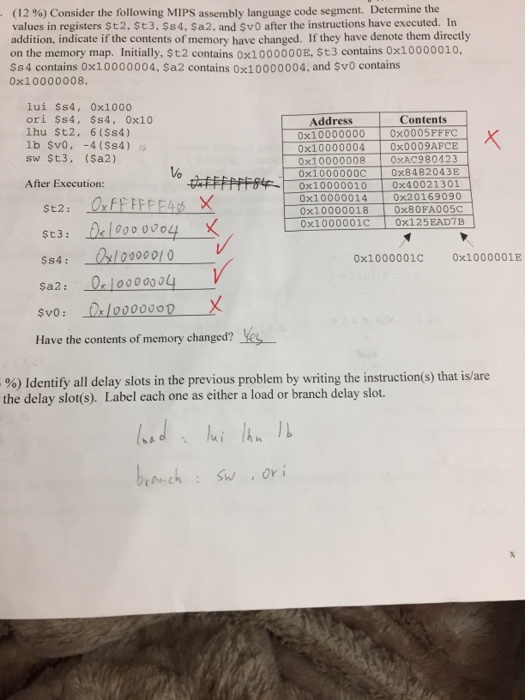

MIPS interrupt handlers typically have to deal with delay slots and fix-up the PC register accordingly. The practical effect of the delay slot for us is that whenever we recompile a branch instruction, we recompile the following instruction first, then perform the branch. Placed in the delay slot. Delayed branchesare an architecturally visible feature of the pipeline. This is the source both of their advantage- allowing the use of simple compiler scheduling to reduce branch penalties.

Apparently MIPS is even more complex, with bits that allow the delay-slot instruction to be predicated in either direction (execute only if taken or only if not taken).(Korey, can you fill in some specifics here?)

I dont think MIPS allows the delay-slot instructions to be predicated. (I may have miscommunicated a bit on my original post) MIPS actually has separate opcodes to distinguish between branches where the delay-slot is always executed and instructions where the delay-slot is conditionally instructed. Additionally, I gather that there is no difference between how MIPS and SPARC treats these delay-slot instructions. The only difference is between the annulled-bit and the opcode to specify which 'handling' is required. Luckily, the decoder/ISA scheme makes the annulled-bit/opcode difference a non-issue. --Ksewell 18:37, 16 February 2006 (EST)

By predicated I just meant conditionally executed. The only other possibility that MIPS might have that SPARC doesn't is a flavor of branch that only executes the delay slot instruction if the branch is *not* taken (as opposed to only if the branch *is* taken). --Stever 19:52, 16 February 2006 (EST)

The 'formal semantics' of SPARC delayed branches are shown in Table 13 of Section 6.3.4 of the SPARC v9 reference manual (p. 100 in this pdf). Basically there are four possibilities, plus two special cases for returning from traps. Following the SPARC conventions, 'B' is an unconditional branch while 'Bcc' is a conditional branch, and 'Tcc' is a conditional trap. (Yes, SPARC has a branch that's unconditionally not taken... don't ask why.)

-DONE and RETRY are two flavors of 'return from exception' in SPARC. --Stever 19:52, 16 February 2006 (EST)

-ERET and DERET are the MIPS return from exceptions. DERET is return from debug exception.--Ksewell 16:32, 17 February 2006 (EST)

It seems like the easiest way to implement this is to expose NPC and NNPC to the ISA definition and let each instruction set either or both of these explicitly as necessary (with the default behavior being no change to NPC and NNPC = NPC + 4). Note that this model should work just fine for FastCPU and SimpleCPU where each instruction executes its semantic definition atomically (no pipelining), without any additional state beyond NNPC.

I think the best way to handle this for pipelined (incl. out-of-order) execution is to treat it as an extension of branch prediction. Right now we predict NPC and catch mispredictions by comparing the predicted & actual NPC values. For SPARC and MIPS we'll have to predict both NPC and NNPC and catch mispredictions by comparing the predicted & actual values of both of them as well. (It appears that comparing the predicted & actual NNPC values might be enough, since looking at the table it's hard to see a case where you could get NNPC right but NPC wrong. But I wouldn't count on that.) The prediction mechanism really just needs one additional bit to distinguish among the first four cases above as opposed to the current two cases (NPC = PC+4 vs. NPC = EA).

I believe it's impossible to get the NNPC right and NPC wrong since when the CPU model sees a branch it makes the prediction for that branch in the fetch stage. If that branch is taken then the other instructions aren't even allowed into the pipeline. --Ksewell 18:37, 16 February 2006 (EST)

I'm more worried about a situation where there's a branch in a branch delay slot or a return from exception into a branch delay slot or something like that... things that MIPS generally doesn't have to worry about but SPARC does. Just to be safe we should always compare both. --Stever 19:52, 16 February 2006 (EST)

Other ideas

1. Keep some type of 'condition-code'-type register(s) in the miscRegs file.

2. For branch delay slot instructions, we can add an extra source register to them. The source register would simply be the destination register of the preceding branch.

I think #2 would work and the extra source register could be added in the rename stage...

The catch here is that just looking at the target may not be sufficient, depending on how you do it. For example if you had this:

then the 'add' could look at the branch target (NPC) but it would be 0x1008 regardless of whether the branch was taken or not taken.

The only drawback is that it wouldnt necessarily allow a branch delay slot instruction to execute the same cycle as it's branch and that kind of defeats the purpose of having delay slot instructions.

Just to clarify: delay slots really make sense only for single-issue in-order pipelines without BTBs, where the delay slot instruction executes in the cycle *after* the branch, hiding the branch-taken bubble that comes from not having a BTB. In this situation the squashing delayed branches are not that hard to implement, as the branch always resolves before the delay slot instruction hits writeback, so you can execute it speculatively and just not write back its result. They were never intended to be executed in the same cycle as the branch.

CPU independent implementation

Should code for these be implemented in the CPU with #define MIPS or #define SPARC ... Or should there be architecture-specific files and/or functions for this branch-delay code?
